Professional wire drawing dies manufacturer.
Professional wire drawing dies manufacturer.
Learn more about the Changsha 3 Better Ultra-Hard Materials Co. Ltd products.

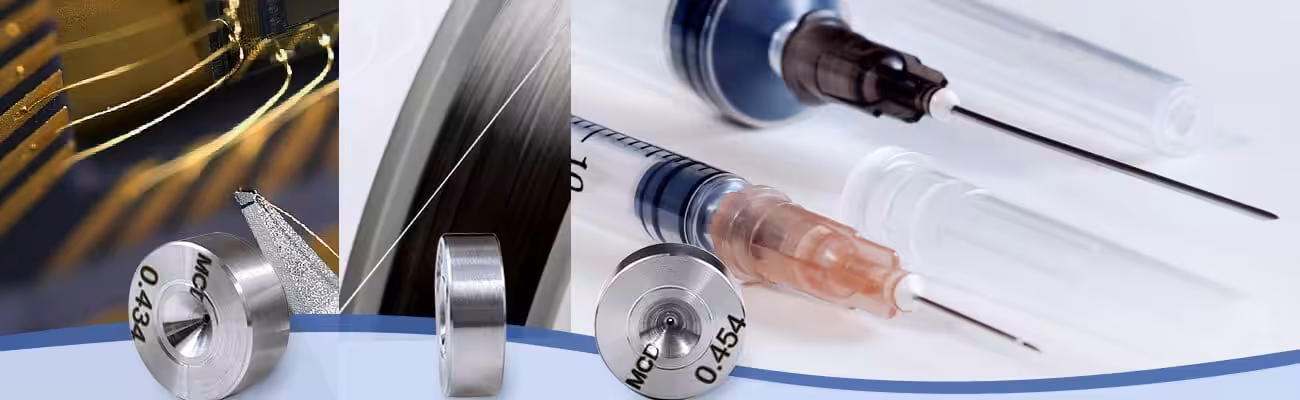

Synthetic single-crystal diamonds is an ideal choice for manufacturing fine steel wires and ultrafine wire drawing. SSCD dies have excellent quality, hardness, accuracy, and service life.
| Full Name: | SSCD(Synthetic single crystal diamond wire drawing die) |
|---|---|
| Size: | Hole 0.04mm-1.5mm (larger or smaller size smaller to be customized to customer requirements) |
| Material: | Stainless steel outer case+Monocrystalline Diamond die blank |
Description
| Full Name: | SSCD(Synthetic single crystal diamond wire drawing die) |
|---|---|
| Size: | Hole 0.04mm-1.5mm (larger or smaller size smaller to be customized to customer requirements) |
| Material: | Stainless steel outer case+Monocrystalline Diamond die blank |
Synthetic single-crystal diamonds, also called synthetic mono crystal diamond, and abbreviated as SSCD, SMCD, MCD, or AD. The die blank used: a single crystal diamond, which is a kind of synthetic diamond under controlled conditions. It has high purity, no impurities, and no cracks characteristics. SOMEBETTER SSCD drawing dies are manufactured with a mirror polish and a smooth wire entry to ensure optimal die life and string-up.
| Reduction Angles & Bearing Length of SSCD Drawing Dies | |||||||
| Elongation | Area Reduction | Bearing Length | Lead Zinc Silver Gold | Hard-Alalloys Nickel Copper | Brass Cualloys Stainless Steel | High Carbon Steel | Hot Tungsten |
| 5-9% | 5-8% | 0.2-0.5d | 14° | 10° | 9° | 8° | 10° |
| 9-14% | 8-12% | 0.2-0.5d | 16° | 12° | 13° | 10° | 10° |
| 14-19% | 12-16% | 0.4-0.8d | 18° | 14° | 13° | 12° | 12° |
| 19-33% | 16-25% | 0.4-0.8d | 22° | 18° | 16° | 15° | 12° |
| 33-54% | 25-35% | 0.4-0.8d | 24° | 22° | 19° | 18° | 14° |
Custom dimensions and reduction angles available upon request.

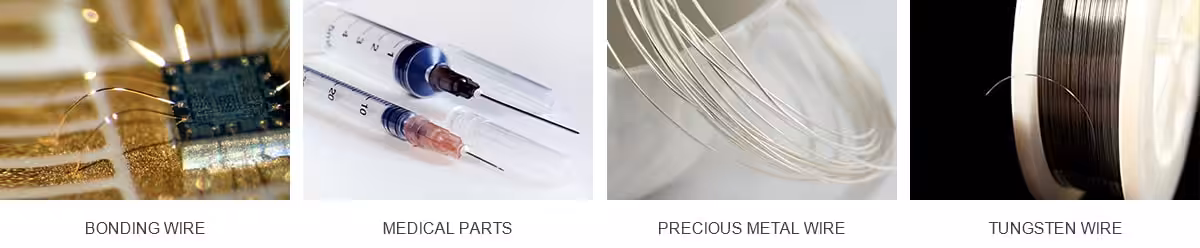

Semiconductor bonding wire (gold, copper and aluminum), Medical wire, Stainless steel wire, Copper wire, Special alloy wire, and Precious Metal wire.A variety of other colored or non-ferrous metal wires.Low, medium, high-speed,single&multi-head wire drawing machine
The drawing dies manufacturing steps of 3 BETTER Drawing Die Factory: select the appropriate drawing die blank and insert it into the drawing die outer casing, and then conduct a series of processing procedures such as trumpet entrance, laser drilling, grinding (rough grinding, fine grinding, finish grinding), grinding, marking, etc. for the die, and then use professional testing equipment to inspect the quality of each finished die.
