Professional wire drawing dies manufacturer.
Professional wire drawing dies manufacturer.
Learn more about the Changsha 3 Better Ultra-Hard Materials Co. Ltd products.

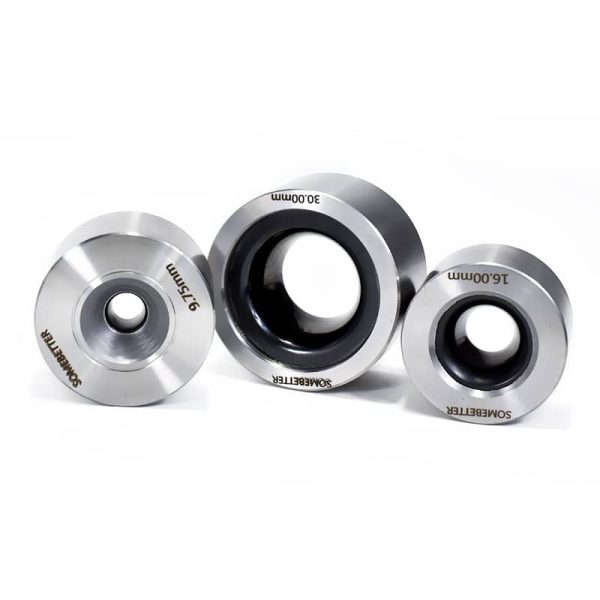

The wire binding die and strand dies are used to guide and/or organize metal wires through the wire binding machine and strand machine. The winding drum of double twist and single twist buncher is inside the machine, and the mold is fixed at the entrance of the machine to collect metal wires. We can provide stranded wire molds of different materials: Tungsten carbide/PCD/Nano coated.
| Full Name: | Stranding dies、compacting dies、Bunching dies |
|---|---|
| Size: | Hole 1.00-35.00mm (larger or smaller size customized according to customer requirements) |
| Material: | Stainless steel outer case+ Tungsten carbide/PCD/Nano coating die blank |
Description
| Full Name: | Stranding dies、compacting dies、Bunching dies |
|---|---|
| Size: | Hole 1.00-35.00mm (larger or smaller size customized according to customer requirements) |
| Material: | Stainless steel outer case+ Tungsten carbide/PCD/Nano coating die blank |

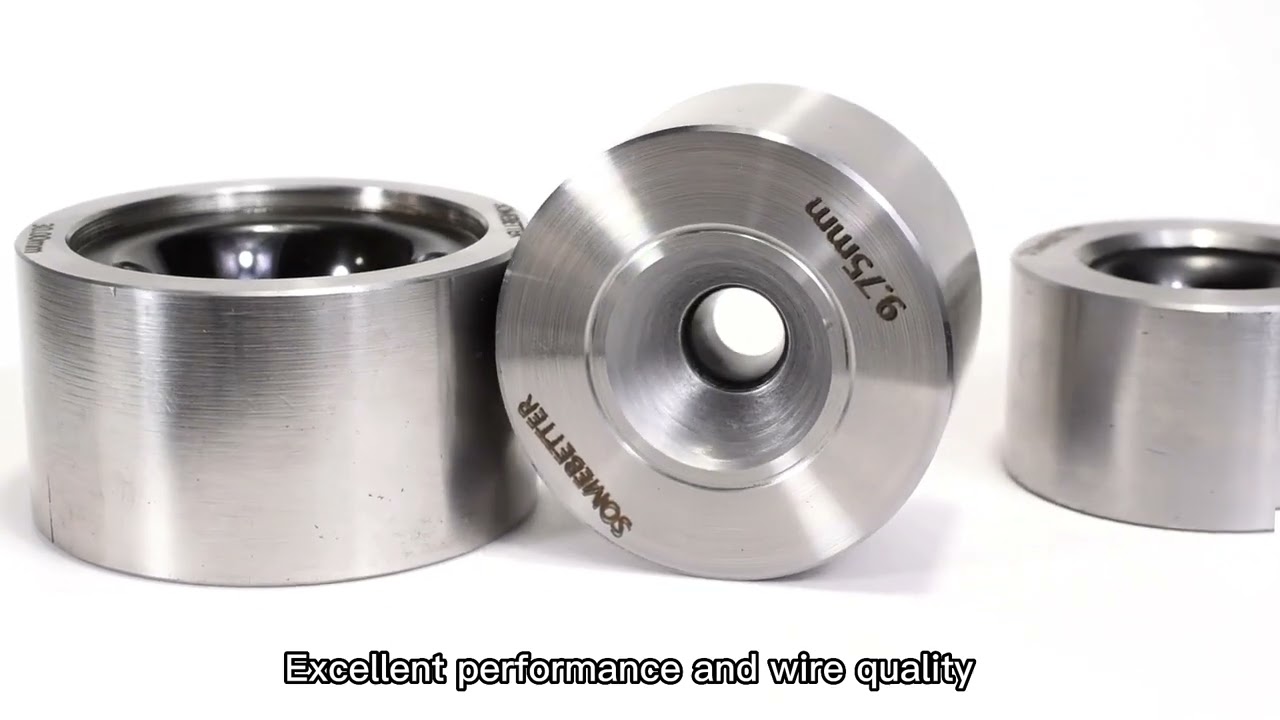

The wire binding and strand dies guide and/or organize metal wires through the wire binding and strand machines. The winding drum of the double twist and single twist buncher is inside the machine, and the mold is fixed at the machine’s entrance to collect metal wires. We can provide stranded wire moulds of different materials, such as Tungsten carbide/PCD/Nano coated.
| Stranding dies sizes | |||||
| OD*Height | Hole Diameter Reduction | Reduction angle(°)-a | Reduction Zone Height(mm)- L1 | Bearing Length(mm)-L | β(°) |
| 20*17 | 4.9 | 28 | 5.5 | 1.5 | 65 |
| 22*18 | 7.2 | 28 | 5.5 | 2 | 65 |
| 25*18 | 8.2 | 28 | 5.5 | 2 | 65 |
| 30*18 | 11.5 | 28 | 7 | 2.5 | 70 |
| 30*18 | 13 | 28 | 7 | 2.5 | 70 |
| 35*22 | 15.9 | 28 | 7 | 2.5 | 70 |
| 38*22 | 18.3 | 28 | 7 | 3 | 70 |
Custom dimensions and reduction angles available upon request.
Applications include high, medium, and low-voltage cables and automotive wires. The wire diameter is accurately controlled, and obtaining a bright wire surface is easy. Aluminum, copper, and other non-ferrous cables, dry drawing of stainless steel, welding wire drawing, and tube drawing.
FAQ
For sample orders, we charge a nominal sample fee plus shipping costs.
The sample cost can be credited toward future cooperation as a form of discount.
Please note that any additional charges arising from local customs or government regulations are not covered by our company.
Our products are manufactured to order. The standard production cycle ranges from 7 to 20 working days, depending on the order quantity.
Throughout the entire process, we strictly follow ISO 9001 quality management standards to ensure consistent quality and reliability.
We offer several shipping options and will recommend the most suitable method based on your order volume, urgency, and destination.
Alternatively, you may choose to use your preferred shipping method.
1. International Express
We typically use DHL, FedEx, UPS, and other major express services.
This method offers fast delivery, door-to-door pickup, real-time tracking, and a high level of security during transportation.
It is suitable for small batches and sample orders, with delivery usually taking 5 to 7 days to most destinations.
2. Sea Freight
Sea freight is ideal for large-volume and non-urgent shipments, such as bulk orders of wire drawing dies.
It provides lower transportation costs, though the transit time is longer — typically 30 to 45 days from China to Europe or the United States.
3. Air Freight
Air freight is ideal for small to medium-volume shipments, offering a good balance between cost and delivery time.
Typically, air freight takes 5 to 10 days to reach most destinations worldwide.
Contact us
Due to fluctuations in raw material costs, international tariffs, and shipping rates, we provide real-time price updates to ensure you get the most competitive offer.
For product questions or sales prices, you can contact us by filling out the form.
