Nano Coated Tube Drawing Dies
nano die2
nano die4

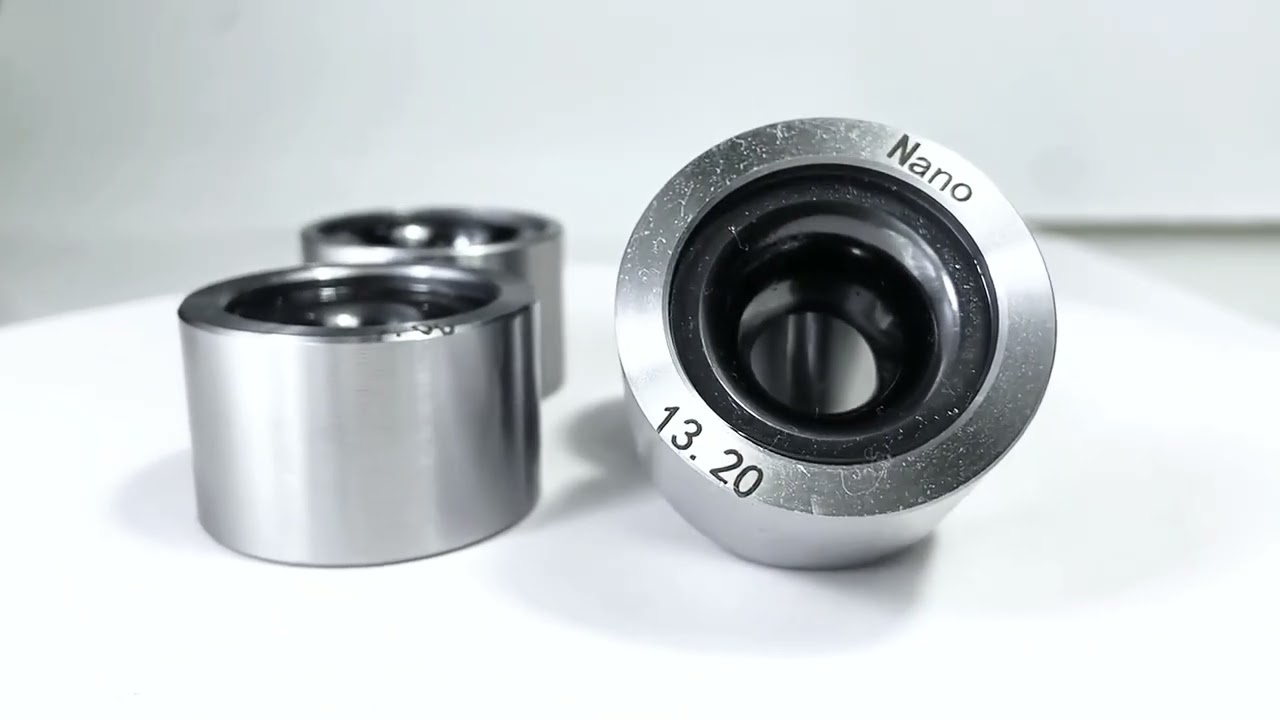

Nano Coated Tube Drawing Dies

The Nano Coated Tube Drawing Dies is a kind of die that combines the high strength and high toughness of alloy carbide and the super wear resistance of natural diamonds.

Full Name:

Tube Drawing Dies/Nano diamond coated die/CVD Coated Diamond Die/
Size:

Hole 3.0mm-50mm (larger or smaller size smaller to be customized to customer requirements)
Material:

Stainless steel outer case+ Tungsten carbide+Nano coating
Request Quote
Online Inquiry

Description

Full Name:

Tube Drawing Dies/Nano diamond coated die/CVD Coated Diamond Die/
Size:

Hole 3.0mm-50mm (larger or smaller size smaller to be customized to customer requirements)
Material:

Stainless steel outer case+ Tungsten carbide+Nano coating

The Nano Coated Tube Drawing Dies is made of cemented carbide (WC-Co) as the substrate, using chemical vapour deposition (CVD) to grow a layer of diamond film on the surface of the inner hole of the die and get a brand-new die after precision grinding and polishing of the diamond coating.
It is a kind of die that combines the high strength and toughness of alloy carbide with the super wear resistance of natural diamonds. It has an extremely high finish, up to 8-25 nanometers.

Nano-Coated Tube Drawing Dies Argument:

Bore size(mm) Core size(mm) Sleeve size(mm) 公差(mm)
3.0-4.0 20*17 45*28 ±0.01
4.01-5.0 25*18 50*30 ±0.01
5.01-8.0 30*21 60*35 ±0.01
8.01-10.0 35*22 70*35 ±0.01
10.01-16.0 40*25 80*44 ±0.01
16.01-20.0 45*24 90*42 ±0.01
20.01-25.0 50*25 100*52 ±0.01
25.01-21.0 55*30 110*55 ±0.01
27.01-30.0 60*35 120*60 ±0.01
30.01-36.0 70*35 140*62 ±0.01
36.01-43.0 80*35 160*63 ±0.01
43.01-50.0 90*35 180*70 ±0.01

This product can be customized according to customer needs.





If you need a quote for wire drawing dies, please contact us!
